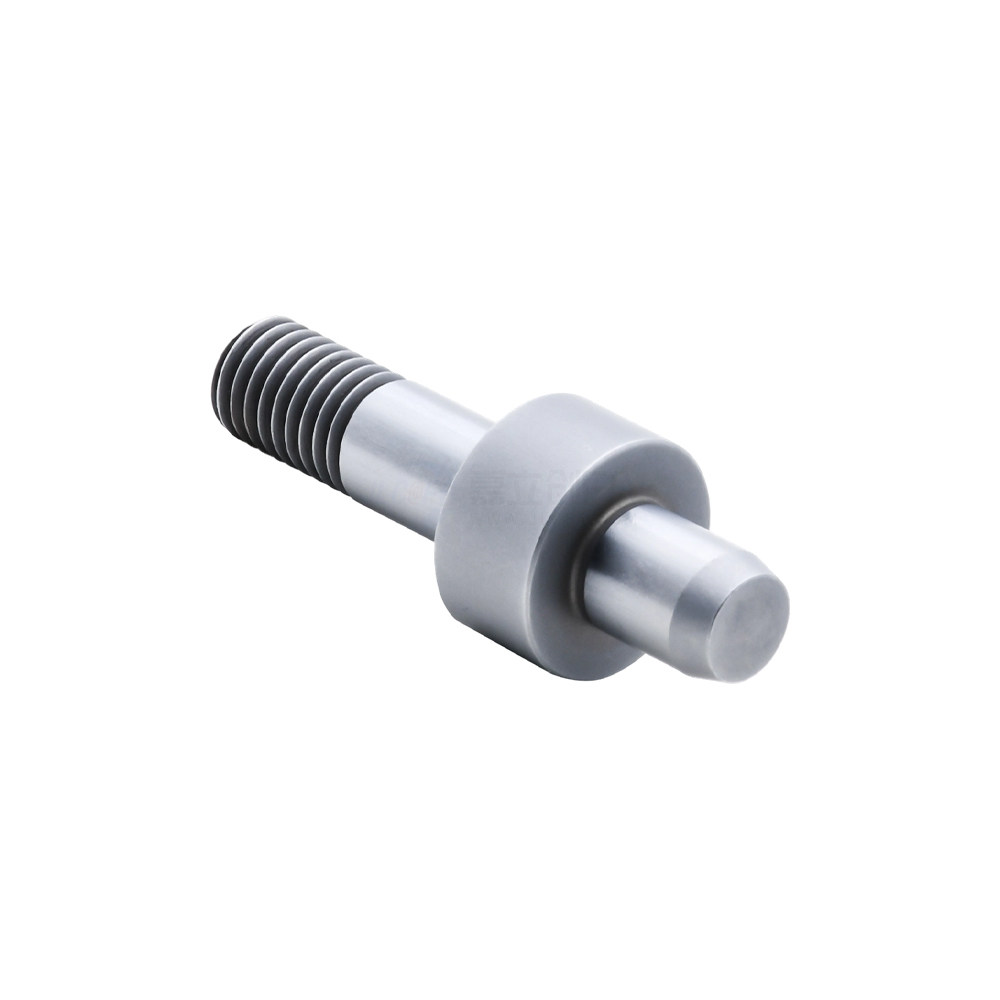

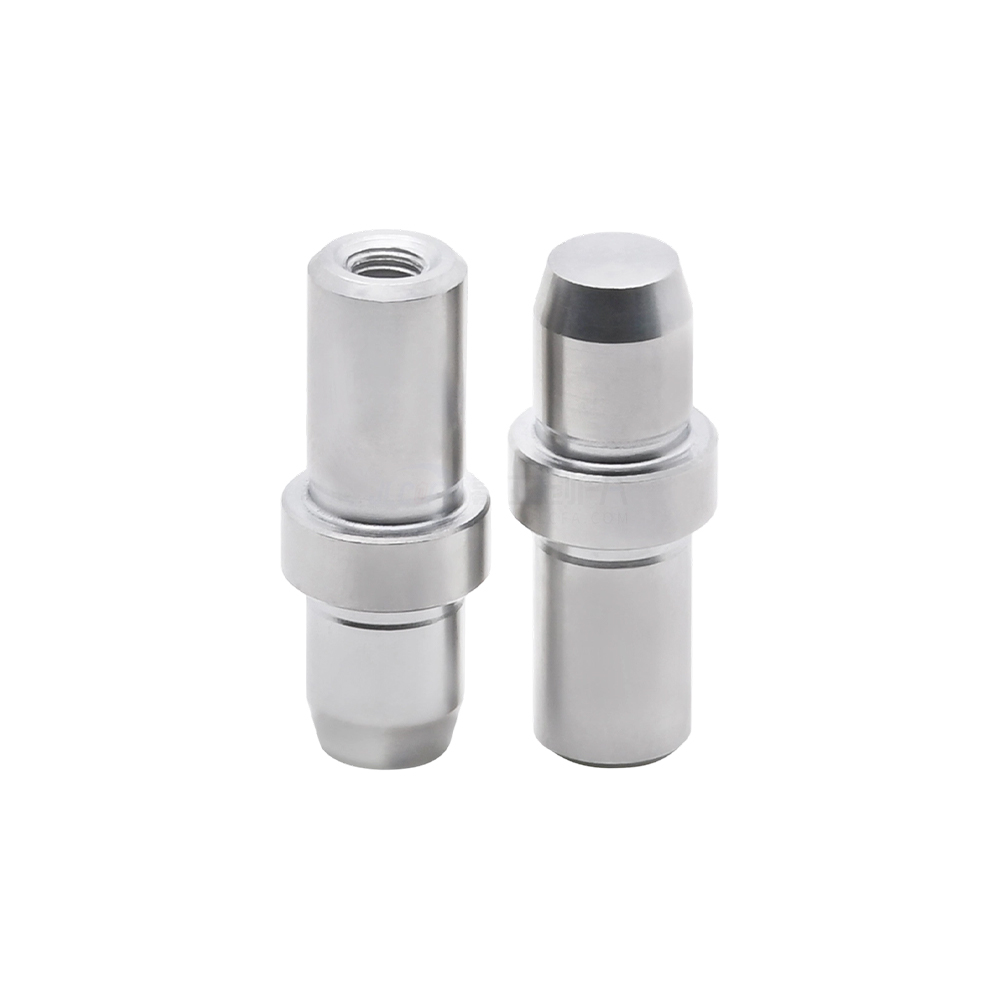

Locating Pin
This product is a precision positioning component, cold-forged and precision ground to achieve high dimensional accuracy and a smooth surface. It is compatible with high-precision holes, ensuring accurate positioning and resistance to deformation. It can accommodate both cylindrical and conical shapes. The full series includes cylindrical and conical types, readily available in stock. The surface is rust-proofed, and it has passed precision testing, meeting precision assembly standards. Precision testing reports are available, and custom sizes are supported.
- Executive Standard
- Specification Range
- Grade & Strength
- Common Materials
- Surface Treatment
- Surface Treatment
- Industry Classification
Locating Pin
1. Product Name: Locating Pin (Also known as: Precision Locating Pin, Locating Screw; English Standard Name: Locating Pin)
2. Standards: GB/T 119.2-2000; ISO 8734; DIN 6326; ANSI/ASME B18.8.2.
3. Specifications: Metric: Diameter 2mm~20mm, Length 5mm~100mm, available in cylindrical and conical shapes, tolerances h7/h8, polished surface; Imperial: Diameter 1/8"~3/4", Length 1/4"~4"
4. Applications: Mold manufacturing, precision instruments, electronic equipment, automotive parts, etc. Suitable for high-precision positioning applications, ensuring accurate workpiece positioning and improving assembly accuracy. 5. Product Description: This product is a precision positioning component, cold-forged and precision ground, ensuring high dimensional accuracy and a smooth surface. It fits high-precision hole positions, provides accurate positioning, is not easily deformed, and is suitable for both cylindrical and conical types.
The full series includes cylindrical and conical types, readily available in stock. The surface is rust-proofed, and it has passed precision testing, meeting precision assembly standards. Precision testing reports are available, and custom sizes are supported.
Metric specifications: Cylindrical locating pins, nominal diameter φ1mm~φ30mm, nominal length 3mm~120mm, tolerance zones g5, g6, h6, h7; Conical locating pins, nominal diameter φ0.6mm~φ50mm, taper 1:50, nominal length 4mm~200mm; Internal thread pull pin type, compatible with M2~M16 internal thread specifications; Imperial specifications: nominal diameter 1/32"~1", nominal length 1/16"~4", tolerance zone compatible with American standard precision system; Non-standard customization: stepped type, shoulder type, guide type, chamfered type, type with venting groove and other special structures.
High-quality low-carbon steel, medium-carbon steel, alloy steel, 304 stainless steel, 316 stainless steel, brass, aluminum alloy, etc.
Environmentally friendly blue-white zinc, colored zinc, black zinc, environmentally friendly nickel plating, zinc-nickel alloy plating, Dacromet coating, electrophoresis, PVD, stainless steel natural color, stainless steel passivation, etc.
It is suitable for high-precision positioning scenarios in mold manufacturing, precision instruments, electronic equipment, and automotive parts, ensuring accurate workpiece positioning and improving assembly precision.
Do you need non-standard fasteners, precision metal parts, or custom structural components for a specific application?
Yongji helps you develop and manufacture special parts and custom products based on your drawings, samples, technical requirements, and target application scenarios.
Whether you need prototype quantities, pilot production, or stable mass supply, we provide an integrated solution from engineering review to production and delivery.
From fasteners to structural parts, Yongji offers integrated development and manufacturing for a wide range of custom precision hardware products.
Whether you need a few pieces for validation, small batches for development, or large volumes for mass production, we can support your project at different stages.
With integrated manufacturing resources in China and Vietnam, Yongji helps customers achieve stable quality, scalable production, and reliable delivery.
